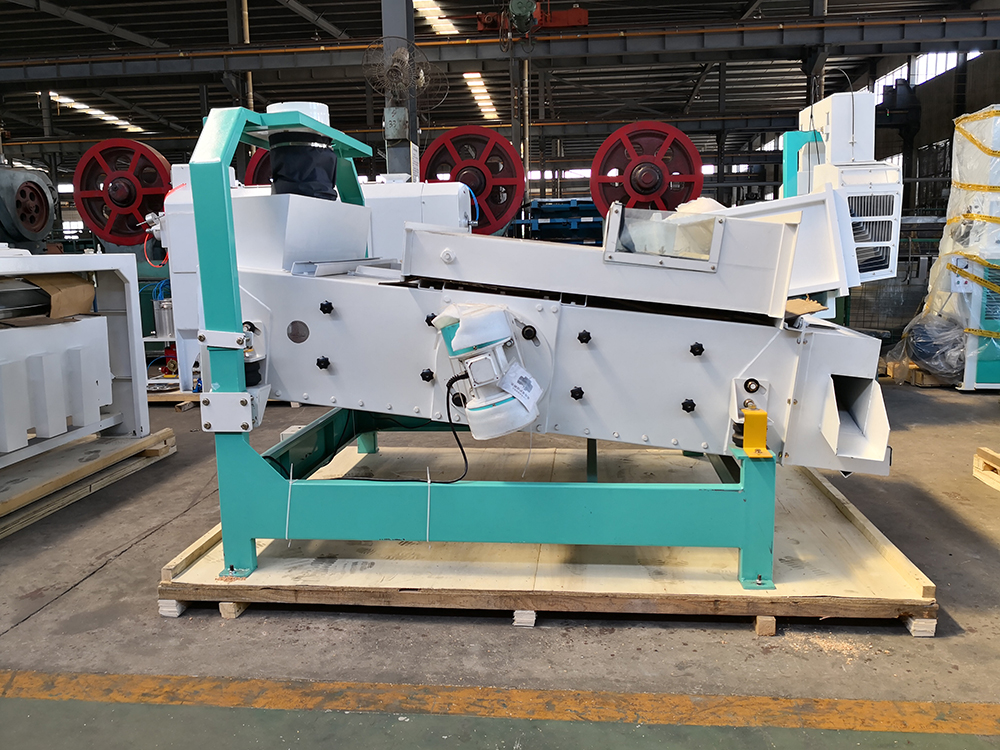

TQLZ125 grain vibrating cleaning machine screen seed grain cleaner
Product Usage
It is used to remove the light impurities which are big,middle or
small from grain.It is suitable for rice plant ,flour plant,feed stuff plant,etc.
Product Features
1.Using vibration motor as vibration source, the vibration force ,
direction and screen frame angle can adjusted.And the operation is
stable and with high reliability,perfect cleaning effect, high
efficient production
2.The whole machine is sealed to prevent dust spill thus keep the
working environment clean.
3.With compact structure, low noise level, low power consumption
4.The screen can be drawn out for fast replace and maintenance.
5.With different sieves,the material is graded according to size.
Main Technical Parameters:
| TQLZ80 | TQLZ100 | TQLZ125 | TQLZ150 |
Productivity(t/h) | 6-15 | 8-20 | 10-25 | 13-30 |
Suction air volume(m3) | 3000-3300 | 4000-4500 | 5000-5500 | 6000-6500 |
Power(kW) | 0.25×2 | 0.37×2 | 0.55×2 | 0.55×2 |
Frequency (r/min) | 920-950 |
Amplitude(mm) | 2.5-5.5 |
Angle (°) | 0-45 |
Sieve angle (°) | 0-12 |
Sieve length(mm) | 1500 | 2000 | 2000 | 2000 |
Sieve width(mm) | 800 | 1000 | 1250 | 1500 |
Overall Size(mm)(L*W*H) | 2500×1300×1550 | 3000×1570×1550 | 3000×1750×1550 | 3000×2000×1550 |
Screen weight(kg) | 300 | 390 | 450 | 530 |
Machine weight(kg) | 600 | 750 | 860 | 940 |
3. Working principle
TQLZ series screen seed cleaner uses vibration motor to generate force.The high frequency and low
amplitude excitation force drives the sieve body to do
reciprocating movement.This makes the particles with different sizes separated by going through different
shapes and sizes of sieve meshes.For the screen surface,there are two types: punching plate and weaving screen.For punching plate,there are
mainly three kinds of holes:round hole, long hole, triangular hole,
etc.Users can choose the hole type according to their requirement.
The process flow of grain vibrating cleaning machine is shown in
the figure below: Material flows into the feed box 5 from inlet 1 through the cloth sleeve 2,then go by the
distributor gate 3 and distributor board 4, evenly distributed along the screen width. The material thickness can be controlled by adjusting the even-distributor plate 6. After entering the first layer of sieve, the
material on the sieve discharges from big impurity outlet 12, the material under the sieve falls to the second layer of sieve,and continue to be cleaned.Clean rice,wheat or other material on the second
layer flows from outlet 11 into air suction aspirator 13 to remove light impurity.Materials under the
second layer drops directly onto the bottom board 9 and discharges from the outlet 10 of small impurity.
Product Description
Packaging & Shipping
Built in 1937,as the first manufacturer of rice mill machine in
China,Rizhao Stream is the most professional manufacturer of rice
mill plant.STR mainly produces Grain Cleaner Machine,Rice Mill,Rice
Grader,Grain Silo,Rice Dryer,etc.It covers the entire process from
cleaning of rice,Destoner,Hulling, Paddy Separator,Rice
Whitening,Water Polisher,Grading,Color sorting to Packing ...
