Factory offer STR TQLZ150 bird seed grain grading gravity table
destoner wheat seed cleaner paddy cleaning machine
Product Usages:
Thepaddy cleaning machine is used to remove the big, middle, small
and light impurities from grain.
Product Features:
1.Using vibration motor as vibration source, the vibration force , direction and screen frame angle can adjusted.And the operation is stable and with high reliability, perfect cleaning effect, high efficient production
2.The whole rice mill vibrating cleaner is sealed to prevent dust
spill thus protect working environment.
3.With compact structure, low noise level, low power consumption
4.The screen can be drawn out for fast replace and maintenance.
Main Technical Parameters:
| TQLZ80 | TQLZ100 | TQLZ125 | TQLZ150 |
Productivity(t/h) | 6-15 | 8-20 | 10-25 | 13-30 |
Suction air volume(m3) | 3000-3300 | 4000-4500 | 5000-5500 | 6000-6500 |
Power(kW) | 0.25×2 | 0.37×2 | 0.55×2 | 0.55×2 |
Frequency (r/min) | 920-950 |
Amplitude(mm) | 2.5-5.5 |
Angle (°) | 0-45 |
Sieve angle (°) | 0-12 |
Sieve length(mm) | 1500 | 2000 | 2000 | 2000 |
Sieve width(mm) | 800 | 1000 | 1250 | 1500 |
Overall Size(mm)(L*W*H) | 2500×1300×1550 | 3000×1570×1550 | 3000×1750×1550 | 3000×2000×1550 |
Screen weight(kg) | 300 | 390 | 450 | 530 |
Machine weight (kg) | 600 | 750 | 860 | 940 |

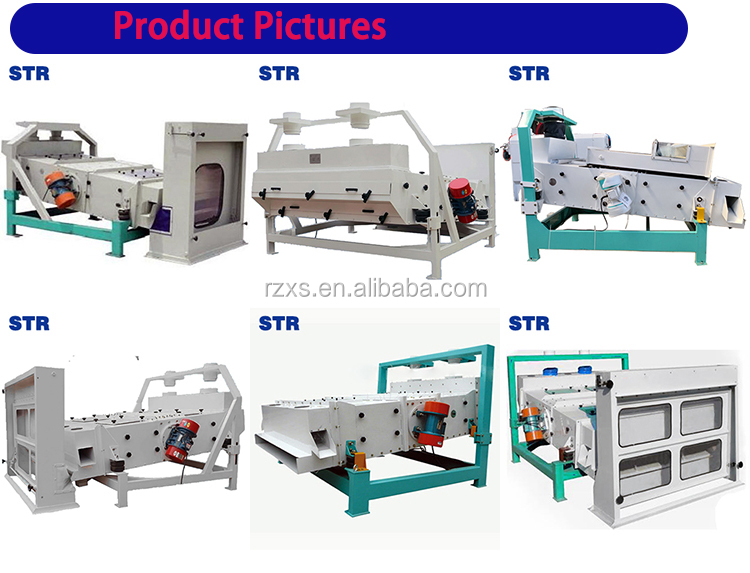

TQLZ series rice mill vibrating cleaner uses vibration motor to
generate force.The high frequency and low amplitude excitation
force drives the sieve body to do reciprocating movement.This makes
the particles with different sizes separated by going through
different shapes and sizes of sieve meshes.For the screen
surface,there are two types: punching plate and weaving screen.For
punching plate,there are mainly three kinds of holes:round hole,
long hole, triangular hole, etc.Users can choose the hole type
according to their requirement.
The process flow of seed paddy cleaning machine is shown in the
figure below: Material flows into the feed box 5 from inlet 1
through the cloth sleeve 2,then go by the distributor gate 3 and
distributor board 4, evenly distributed along the screen width. The
material thickness can be controlled by adjusting the
even-distributor plate 6. After entering the first layer of sieve,
the material on the sieve discharges from big impurity outlet 12,
the material under the sieve falls to the second layer of sieve,and
continue to be cleaned.Clean rice,wheat or other material on the
second layer flows from outlet 11 into air suction aspirator 13 to
remove light impurity.Materials under the second layer drops
directly onto the bottom board 9 and discharges from the outlet 10
of small impurity.
Factory Introduction:
Established in 1937, our company has grown into China's oldest and
most professional rice mill machines manufacturer.Nearly 2000
staffs work here.
We specialized in manufacturing all kinds of rice mill machines
such as N series jet rice mill machine;SN,SN-A,SN-B series of
double blower rice mill machine;LNT,LNT-X series of combined rice
mill machine;MCHJ series of rice mill plant;LM24-2C,LJ-25 type rice
huller;FT series of suction elevator;DT series elevator;combined
cleaning and de-stoner,and so on.
Our brand products are Province Inspection Exemption Product.
Three "Best" is the core of our company:
1.Best Quality:with 82 years of experience
2.Best Price:This is due to mass production
3.Best Service:This is realized by dozens of years experience of
our engineers.
Q1:How do you ensure the quality of your machines?
A1:Most of our QC workers have more than 20 years experience.All
machines are tested before leaving the factory.
Q2:What if you lie to our money?
A2:If you worry,we can offer APG (Advanced Payment Guarantee).Bank of China will inform you that we
are ready for APG first,then you make payment.Bank of China will
provide APG once they get your money.
Q3:How about the installation and training of our workers?
A3:We will send engineers to your place before installation.
Q4:What is your leading time and delivering time?
A4:Normally it is 25 working days.In busy season,it will be
longer.We will let you know the exact delivering date when
contract.
Q5:What size of workshop we should build?How many land do we need?
A5:Once you confirm the machine model you will need,our engineers
will design the drawing for you accordingly.
Q6:What is your warranty?
A6:It is at least 12 months or longer.
Q7:Can we put our machines bought from other suppliers in your
container?
A7:Sure,Just let your supplier send the machines to our factory in
advance.
