    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs

    Ask Lasest Price
    Brand Name : STR
    Certification : ISO
    Supply Ability : 100 Set/Sets per Month rice/corn/grain/herbs/cereal grinder/flour mill/crushing machine
    Price : $3,500.00/sets 1-1 sets
    • Product Details
    • Company Profile

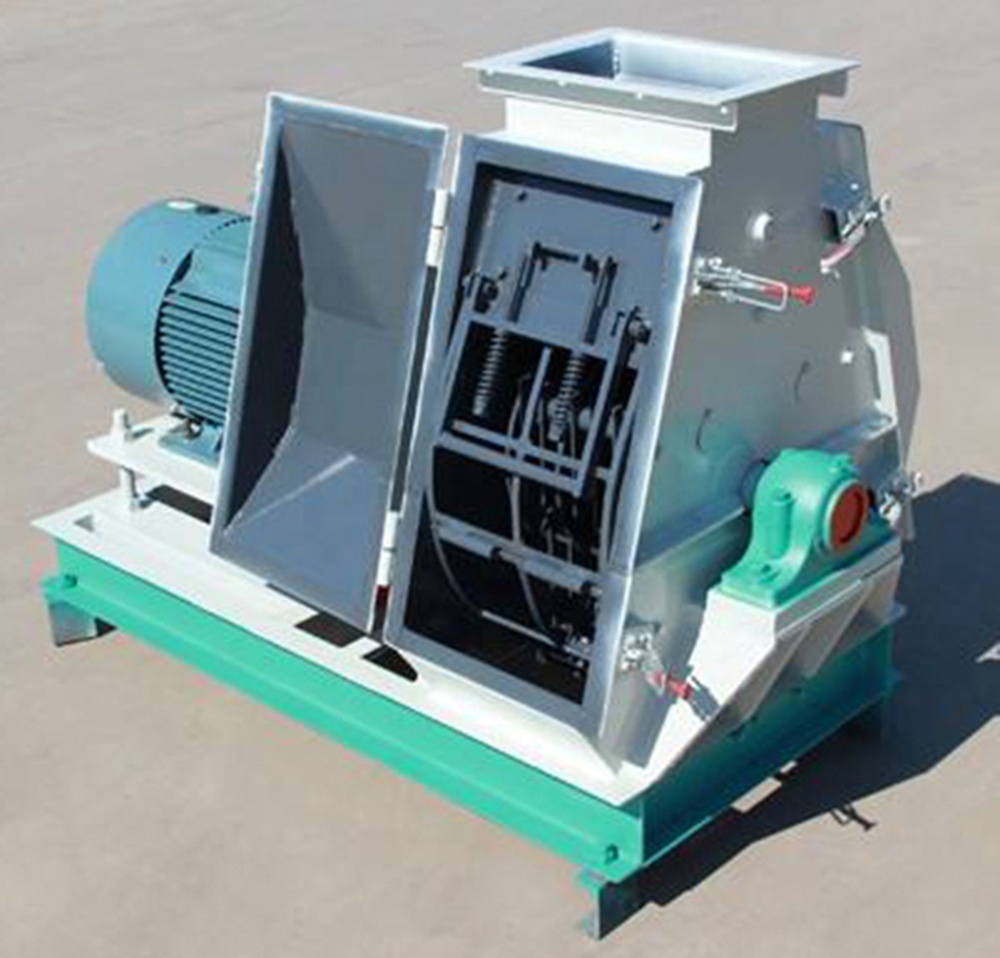

    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs

    Product Description
    SPSF56*40 Feed Processing rice husk grinding hammer mill machine for rough rice plant

    Product Usage

    The water-drop SPSF hammer mill crusher is suitable for crushing various granular feed materials, such as corn, rice,sorghum, grain,wheat, soybeans, etc,widely used in large medium and small scale feed factory,alcohol plant,lemon factory,food products factory and so on.The single machine equipped with pipe, cyclone,fan,airlock can form a line to process feed for pig or chicken.

    Product Features

    1.Operation door can be open for replacing the sieve or hammer 2. The inlet on top is equipped with impeller feeder to adjust the feeding speed. 3. The feeding guide mechanism at the inlet controls the direction of raw material flowing into the crushing chamber. 4. The rotor is tested by precise measure such as dynamic balance and vibration to run more smoothly which can completely crush the raw material without dead angle.to get better effect. 5. Large wide-body crushing chamber, stable performance, small vibration, easy operation, long service life.
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs

    Working principle

    The raw material go through the feeding mechanism into the feed hammer, then gradually crushed by high speed rotating hammer and alls on sieve plate. Finally, the finish particles are discharged through the holes on the sieve by centrifugal force. With positive and negative rotor, two-way feeding mechanism,raw material can be crushed into coarse and fine particles by replacing the sieve.So one machine can realize multi-purpose.
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs







    Structure of sieve and hammer inside





    Structure of Rice/ Corn/ Grain/Herbs/Cereal grinder/Flour mill /Crushing machine

    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    Product Paramenters
    Item
    SFSP60*70
    SFSP60*90
    SFSP68*80
    Capacity(t/h)(Rice Husk)
    1.2~2
    1.5~2.2
    5~10
    Main Power(Kw)
    75
    90
    75~90
    Rotor Dia.(mm)
    600
    600
    680
    Crushing chamber width(mm)
    700
    900
    680
    Main shaft speed(rpm)
    2950
    2950
    2950
    Hammers QTY. (Pc)
    4*18(=72)
    4*24(=96)
    4*32(=128)
    Hammer linear speed(m/s)
    93
    93
    93
    Type of shock absorber
    YG3-4
    YG3-4
    YG3-4
    Weight (kg)
    1100
    1200
    1300
    Dimension
    2200*1100*1400
    2300*1200*1500
    2350*1250*1500
    Item
    SFSP56*40
    SFSP60*45
    SFSP60*60
    Capacity(t/h)(Maize)
    3~4.5
    4~6
    4.5~8
    Main Power(Kw)
    37
    45
    55
    Rotor Dia.(mm)
    560
    600
    600
    Crushing chamber width(mm)
    400
    450
    600
    Main shaft speed(rpm)
    2950
    2970
    2970
    Hammers QTY. (Pc)
    4*6(=24)
    4*10(=40)
    4*12(=48)
    Hammer linear speed(m/s)
    86
    93
    93
    Type of shock absorber
    YG3-4
    YG3-4
    YG3-4
    Weight (kg)
    750
    820
    850
    Dimension
    1628*800*1000
    1850*900*1100
    1960*900*1100
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    Company Profile
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs

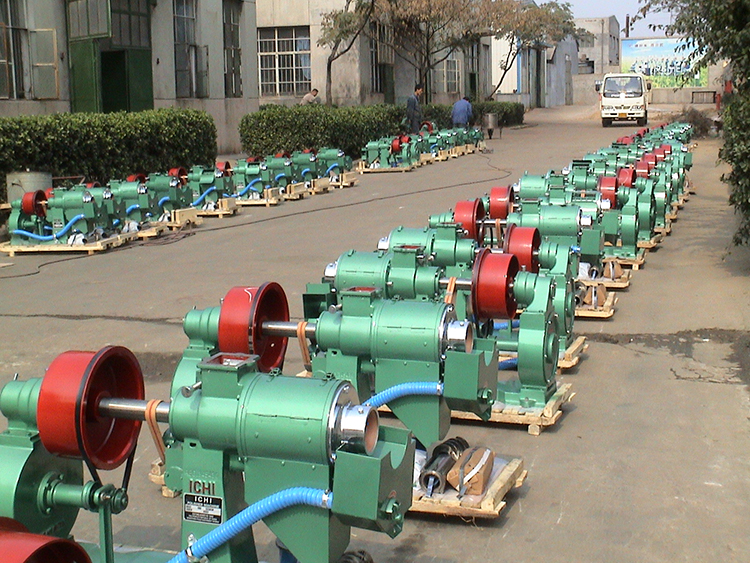

    Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) is 'Famous brand of china machinery industry 'and 'Shandong famous brand ',with a more perfect quality management system.Our company won 'two grade national enterprise 'honor in 1989; Won 'Shandong Quality Management Award ' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.

    Certifications
    380v 50hz 3phase SPSF56*40 Rice Husk Grinding Hammer Mill Machine for Rice Mill Needs
    As the century company,we got many certificates and national attention
    Our brand of rice mill is 'Famous brand of china machinery industry 'and 'Shandong famous brand ',with a more perfect quality management system.Our company won 'two grade national enterprise 'honor in 1989; Won 'Shandong Quality Management Award ' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
