20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator

Rizhao Stream International Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers

    Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers
    • Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers
    • Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers
    • Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers
    • Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers
    • Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers
    • Buy cheap 20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator from wholesalers

    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator

    Ask Lasest Price
    Brand Name : STR
    Supply Ability : 1000 Set/Sets per Month
    Price : $1,000.00 - $50,000.00/pieces
    • Product Details
    • Company Profile

    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator

    Product Description

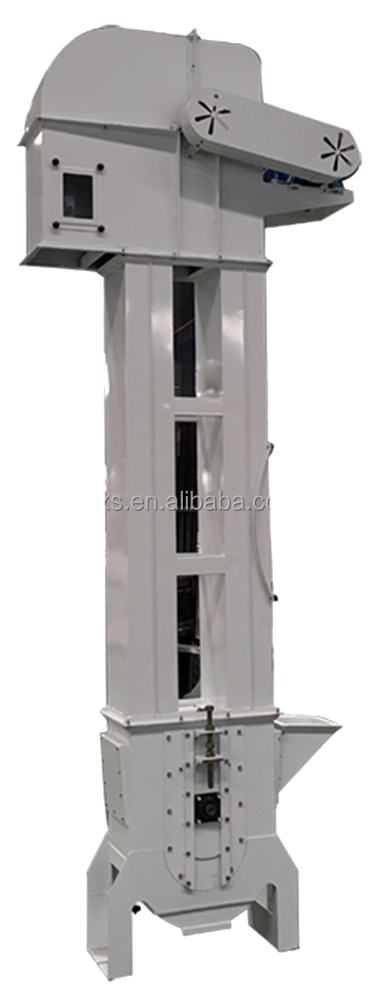

    Top quality STR TDTG36/28 20t/h rice milling hdpe maize wheat bean grain centrifugal discharge conveyor bucket elevator

    TDTG series low speed bucket elevator is an ideal hoisting machine in rice processing factory to avoid rice broken during transportation. It features steady operation, large hoisting capacity. Its bucket has auto-tightening device, lifting height from 3m to 25m,Capacity ranges from 8~650 tons per hour.
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator

    Product Features

    1.Small installation space,large capacity, high lifting height 2. Total enclosed structure with good sealing,no dust leak out. 3. Materials are fed into the bucket evenly ; 4. The height of elevator is customized according to real condition; 5. The bucket tension can be adjusted easily; 6. Less back-flow.
    Working principle The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top. The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.
    Details Images
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    Product Paramenters
    Machine type
    TDTG
    TDTG
    TDTG
    TDTG
    TDTG
    TDTG
    TDTG
    TDTG
    TDTG
    26*15
    40*19
    40*23
    61*29
    70*33
    80*47
    80*51
    100*47*2
    110*51*2
    Conveying capacity(T/H)
    8~15
    20~35
    20~35
    35~50
    60~100
    120~200
    150~250
    350~550
    400~650
    Speed(m/s)
    1~2
    1.6~2.5
    1.6~2.5
    2.0~3.2
    2.0~3.2
    2.0~3.2
    2.0~3.2
    2.5~4
    2.5~4
    Capacity(L)
    0.62
    1.26
    1.31
    1.59
    3.9
    8.5
    9.46
    8.5*2
    9.46*2
    Distance(MM)
    150~200
    200
    200
    200
    250
    250
    250
    250
    250
    Width(MM)
    150
    190
    235
    285
    337
    475
    519
    475
    519
    Bend width(MM)
    175
    220
    250
    350
    380
    500
    550
    1000
    1200
    Head drum diameter(MM)
    260
    400
    400
    610
    700
    800
    800
    1000
    1140
    Hot Sale Machines
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    N Series Iron Roller Rice Mill Machine
    Multifunction home use rice mill
    SB-30 Combined Rice Mill
    LM24-2C Home Use Brown Rice Huller
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    Combact Rice Mill Plant
    Multifunction 3 in 1 Grain Cleaner
    TQSX Rice Destoner
    CCD64 Mini Color Sorter
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    MMJP White Rice Separator
    Husk Hammer Crusher
    MWPG Rice Water Polisher
    30~50 TPD Rice Mill Plant
    Packing & Delivery

    Top quality STR TDTG36/28 20t/h rice milling hdpe maize wheat bean grain centrifugal discharge conveyor bucket elevator

    1,Standard export package or according to clients' requirement;
    2,We cooperate with MAERSK,MSC,CMA,COSCO,and other big shipping company with long term cooperation contract,to ensure the safety of machines,to ensure the in time delivery,and to provide the 14~21 days freezer use.
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    Company Profile
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) mainly produces Grain Cleaner Machine,Rice Mill,Mini Rice Mill,Rice Grader,Rice Polisher Machine,Rice Packing Machine,Grain Dryer,Grain Silo,Bucket Elevator, Rice/Corn/Grain/Herbs/Cereal Grinder/Flour Mill/Crushing Machine. STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, millet processing equipment with daily output 20-80 tons, maize processing equipment with daily output 30-80 tons.
    Most workers have been working here for more than 20 years with rich experience.This is why we are better in quality than other suppliers. Furthermore, many Chinese standards in Rice Mill field were made by our company.
    Certifications
    20t/h Rice Milling HDPE Maize Wheat Bean Centrifugal Discharge Conveyor Bucket Elevator
    As the century company,we got many certificates and national attention
    Our brand of rice mill is 'Famous brand of china machinery industry 'and 'Shandong famous brand ',with a more perfect quality management system.Our company won 'two grade national enterprise 'honor in 1989; Won 'Shandong Quality Management Award ' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
